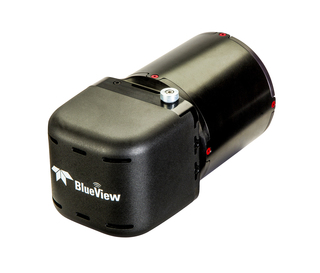

M900 Series 2D Görüntüleme Sonarı

The industry's most compact, full featured 2D Multibeam Imaging Sonar available. Engineered to fit in small, tight spaces the M Series is 30% smaller than the popular P Series, and delivers the same crisp, real-time sonar imagery.

Applications

  • All Condition Navigation
  • Object Detection
  • Obstacle Avoidance
  • Situational Awareness
  • Operations Monitoring
  • Area Survey/Search & Recovery
  • Touch Down Monitoring
  • Diver/Swimmer Detection & Tracking

Benefits

  • NEW!!! 'S3' electronics
    • 30% lighter, smaller, faster and less power then P Series

    • Automatically adjust transmit power level to improve imagery up close and at long ranges

    • UDP broadcast modes

    • Built in hardware triggering options

    • Built in target tracking options

  • Easily fits on any platform
  • Expanded area coverage
  • High-resolution imagery
  • Unaffected by motion
  • Easy automation of nav-control systems

M900-90 M900-130
Description Ideal for detection and identification with expanded field-of-view Ultimate system for maximum area coverage with ultra wide field-of-view
Sonar
Field-of-View 90° 130°
Max Range 100 m (328 ft.) 100 m (328 ft.)
Optimal Range 2 - 60 m (6.5 - 197 ft.) 2 - 60 m (6.5 - 197 ft.)
Beam Width 1° x 20° 1° x 20°
Number of Beams 512 768
Beam Spacing 0.18° 0.18°
Range Resolution 1 in. 1 in.
Update Rate* Up to 25 Hz Up to 25 Hz
Frequency 900 kHz 900 kHz
Interface
Supply Voltage 12 - 48 VDC 12 - 48 VDC
Max Power Consumption (24VDC) 20 W 20 W
Connectivity Ethernet/VDSL* Ethernet/VDSL*
Mechanical
Weight in Air (1,000 m/4,000 m) 4 lbs/10.54 lbs 4 lbs/10.54 lbs

Weight in Water (1,000 m/4,000 m)

0.86 lbs/5.09 lbs 0.86 lbs/5.09 lbs
Depth Rating

1,000 m (3,280 ft.)

4,000 m (13,120 ft.)

6,000 m (19,685 ft.)

1,000 m (3,280 ft.)

4,000 m (13,120 ft.)

6,000 m (19,685 ft.)

Size*** L x W (max. OD) (1,000 m/4,000 m)

19.20 x 10.16 (4 in can) cm (7.56 x 4.00 in.)/

25.9 x 12.7 (5 in can) cm (10.2 x 5 in.)

19.20 x 10.16 (4 in can) cm (7.56 x 4.00 in.)/

25.9 x 12.7 (5 in can) cm (10.2 x 5 in.)

Connector Options MKS, Burton, Schilling SeaNet MKS, Burton, Schilling SeaNet

*Range dependent

**Non-VDSL unit at 24VDC

***Length does not include connector length
