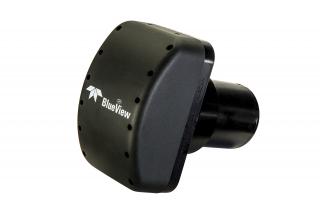

MB1350-N/W Multibeam Profiler Sonar

At 1.35 MHz, the MB1350 delivers 3D profile data at levels more akin to a laser line scanner than today’s low frequency bathymentry systems. Mountable on Boats, ROVs, UUVs, and Tripods, BlueView’s MB1350 is the right tool to take your operation into the next generation of 3D bottom and structure mapping.

Applications

  • Site Survey
  • 3D Structure Rendering
  • Post Hurricane Inspection
  • Environmental Assessments

Benefits

  • Ultra-High Resolution
  • Compact/low power
  • Designed for easy integration

Features

  • Industry Standard Output Format
  • Standard Ethernet Interface
  • Software Development Kit

1.35 MHz Sonar

  • Field of View: 42°x1° / 76°x1°
  • Max Range: 90 ft
  • Beam Width: 1°x1°
  • Number of Beams: 256
  • Beam Spacing: 0.18°
  • Time Resolution: 0.015 m (0.59 in.)
  • Max Update Rate: 40 Hz
  • Frequency: 1.35 MHz

Bu ürün için bize info@ekoton.com.tr mail atabilir ya da bize sitemizden Mesaj gönderebilirsiniz.
