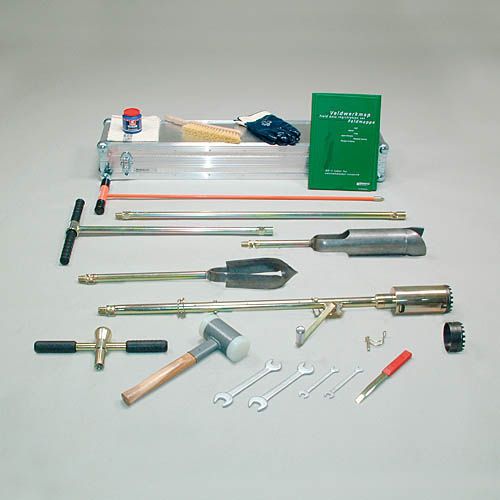

Bi-partite root auger set, to 2 m depth

By applying the bi-partite root auger almost undisturbed, uniform soil samples can be taken in layers of maximal 15 cm. The bi-partite root auger consists of a bottom part fitted with an exchangeable drilling-crown and a short unscrewable top part (handle) with a beating head.

In lighter soil the auger can be pushed and turned into the soil. In heavier soils an impact absorbing hammer can be used.

In the standard set an Edelman- and a Riverside auger have been included for reaming out the bore hole and levelling the bottom (making it even). A conical threaded connection is used.

The root auger is fitted with a sample extruder unit which forces the soil sample from the cylinder of the auger. The extruder unit is operated by means of a crank handle.

The complete root auger set, including all accessories, is packaged in an aluminium transport case.

Benefits bi-partite root auger

  • Takes root samples of all non-stony soil layers
  • Can be hammered
  • Sharp hardened and exchangeable cutting ring
  • Incorporated sample extruder

Applications

  • Research to determine the possibilities to develop a root system and to determine the depth and the density of the root system.
  • The root auger can be used in virtually all types of soil.
  • Compound manure sampling. By applying extension rods the auger can be used to a depth of approximately 2 meter.

Bi-partite root auger set, to 2 m depth

Connection

screwthread

Maximum root thickness

20 mm

Maximum sample depth

200 cm

Product material

iron, other material

Sample diameter

80 mm

Sample length

150 mm

Sample specification

undisturbed

Sample volume

750 ml

Sampler position

vertical

Package size

117 x 27 x 23 cm

Weight

27.5 kg

Applications

Soil sampling above groundwater table

Environmental soil research

Undisturbed sampling

Soil texture research

Root zone sampling
