CFINS Florimetrik Dahili Kirlilik Haritalama Sistemi

C-FINS™ Fluorometric Integrated Nautical Mapping System

C-FINS™ integrates the C3™ Submersible Fluorometer’s digital output with GPS to enable easy visual mapping of data. A simple software module enables C-FINS™ and ArcGIS® to work together allowing for real-time mapping of fluorescence, temperature, depth, and turbidity. The ability to capture and integrate these data reliably using the C-FINS™ package is a powerful tool for researchers.

Product Highlights:

· Simplifies Data Mapping using a GPS-integrated C3™ Submersible Fluorometer

· Provides real-time data collection and integration

· Works with industry-standard ArcGIS® 10.0 or 10.1 software

· Simple upgrade for existing C3™ Submersible Fluorometers

· Free software add-in available

C-FINS™ Package Requirements
Required items available from Turner Designs


· C3™ Pressure Sensor

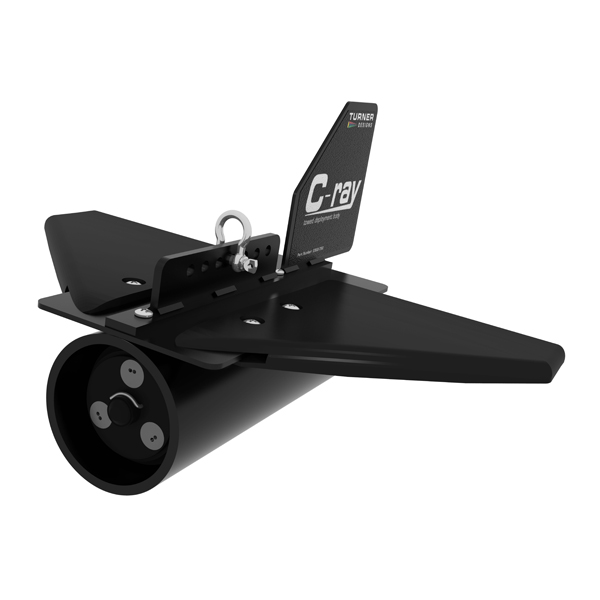

· C-ray™ Towed Deployment Body

· C-ray™ Shade Cap

· ArcGIS® 10.0 or 10.1 C3™ Add-In Module

· Extender Cable

· Boosters (for cables >10 meters)

· Continuous Data Cable

Required items available from other sources


· PC with ArcGIS® 10.0 or 10.1 Software and at least 2 com ports

· GPS with RS232 com port - NMEA format (not USB) (Garmin interface cable recommended)

Free ArcGIS® 10.0 or 10.1 C3™ Add-In Module
To use the Add-In Module please do the following:

· Ensure ArcGIS® 10.0 or 10.1 is installed on your PC.

· Download the free C3™ Add-In Module (zip file) to your desktop.

· Unzip and open the file and click on the File TD_C3.esriAddIn

· This is a self-extracting file that will add the C3™ Add-In Module to your ArcGis® 10.0 or 10.1 system.

· Open the C3™ Add In Module Quick Start file (pdf) for information on using the Add-In Module

C-FINS Fluorometric Integrated Nautical Mapping System Specifications

C3 Submersible Fluorometer & C-ray Physical Specifications

Total Weight in Air

9 kg; 20 lbs

Total Length

37.8 cm; 14.9 in

Total Width

49.8 cm; 19.6 in

C-ray Inside Diameter

10.4 cm; 4.1 in

C-ray Housing Material

Powder Coated Low Carbon Steel

C-ray Wings Material

High Strength Plastic

C3 & C-ray Shade-Cap Material

Delrin Plastic

Operating Temperature

-2 to 50 degrees C

C3 Performance Specifications

Application

Minimum Detection Limit

Linear Range

CDOM/FDOM

0.1 ppb**
0.5 ppb***

0-1,500 ppb**
0-3,000 ppb***

Chlorophyll in vivo
Blue Excitation
Red Excitation


0.03 μg/L
0.3 μg/L


0-500 μg/L
>500 μg/L

Fluorescein Dye

0.01 ppb

0-500 ppb

Oil - Crude

0.2 ppb***

0-1,500 ppb***

Oil - Fine

10 ppb*
10 ppm****

7,000 ppb*
>100 ppm****

Optical Brighteners

0.6 ppb***

0-2,500 ppb***

Phycocyanin
(Freshwater Cyanobacteria)

2 ppbPC

0-4,500 ppbPC

Phycoerythrin
(Marine Cyanobacteria)

0.1 ppbPE

0-750 ppbPE

PTSA Dye

0.1 ppb***

0-650 ppb***

Rhodamine Dye

0.01 ppb

0-1,000 ppb

Tryptophan for Wastewater Monitoring

3 ppb

5,000 ppb

Turbidity

0.05 NTU

0-1,500 NTU

* 1,5 Napthalene Disulfonic Disodium Salt
** Quinine Sulfate
*** PTSA (1,3, 6, 8 - Pyrenetetrasulfonic Acid Tetrasodium Salt)
**** BTEX (Benzene, Toluene, Ethylbenzene, Xylenes)
PC Phycocyanin pigment from Prozyme diluted in Deionized water
PE Phycoerythrin pigment from Prozyme diluted in Deionized water

C3 Electrical Specifications

Minimum Power Supply

8 to 30 volts; 5 watts

Output

Digital (ASCII String)

Interface

RS232

Minimum Sample Interval

1 Second

C-ray Towing Speed

1 to 5 knots*

*Recommended deployment speed depending on water conditions
