Sediment

Bozulmamış Profil Sediment Örnekleme

Bozulmamış Profil Sediment Örnekleme

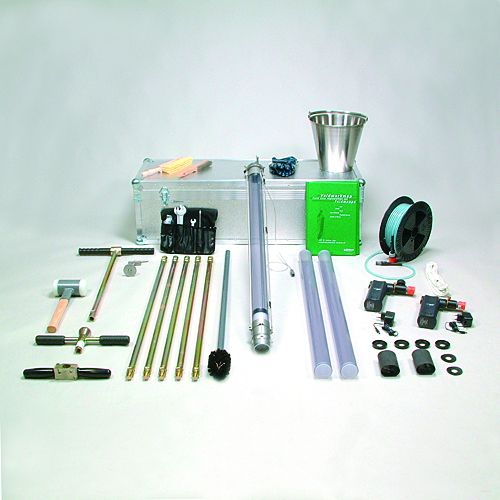

Sediment core sampl type Beeker,standard

(set A = basic set) can be used as an independent sampler.

· Like Multisampler / piston sampler but with lockable head and it is possible to hammer the sampler.

· 1.0 and 1.5 m long sampling tubes.

· Only suitable for assessing / pressing out samples on site.

· Operation almost as simple as Multisampler or piston sampler.

· Much cheaper than the old Beeker sampler set.

· The standard set is suitable for application in water to a maximum depth of 5 meter. Using extra extension rods sampling is possible to a greater depth in certain cases.

· Because of the compressed-air reservoirs and the large hose couplings the sampler has a maximum mobility and a variety of applications.

· The sampler is lightweight and easy to use, so many samples can be taken in a day.

· It is able to cope with many types of sediment varying in consistency from very watery and uncohesive to unconsolidated sands, regardless of the stratification of the soil.

(set B = extended set). Similar to the basic set, however supplied with the discharge and partitioning system to describe and press out samples on a very sophisticated, accurate manner.

· Tubes can be used directly in column tests.

· Transfer samples anaerobic in nitrogen environment.

· Describe and press out etc. at home base.

· A simple and controlled discharge- and/or partitioning of the sample with the hydropneumatic discharge- and partioning system.

Note: As sampling depth increases in flowing waters sampling will be more difficult.

Benefits Sediment core sampler, type Beeker

  • No loss of sample in any case

· Cutting head can be closed with air pressure

· Piston assures perfect core sample length

· Can be hammered to sample all sediments

· For sample lengths up till 150 cm

· Transparant: Easiest profile description

· Contaminant free stainless steel body

· Set B allows for 10cm sub sample transfer

Remarks

· Cannot be used in unsaturated sediments

Sediment core sampl type Beeker,standard

Connection

screwthread

Maximum sample depth

5 - 8 m

Power supply

manual

Product material

stainless steel, iron, PVC, other material

Rod or cable operated

rod

Sample specification

undisturbed

Sample stored in

tube

Sample volume

2.4 - 3.5 liter

Sampler position

vertical

Package size

147 x 61 x 90 cm

Weight

100 kg

Applications

Soil profile description and classification

Environmental soil research

Undisturbed sampling

Geohydrological research

Sediment sampling
