Water sampler ‘Watertrap’

The sampler ‘Watertrap’ has been designed to take representative samples from running water up to a depth of approx. 25 meter. Samples are taken with the stainless steel device by catching part of a horizontal moving column at a certain moment at a certain depth.

The sampler is lowered by means of a hand winch fitted with a steel cable. The winch is fixed to a telescopic arm. The fastening clip of the telescopic arm allows fixing of the arm on the railing of a bridge or a boat. The depth at which the sampler is located can be read from a depth counter.

The valves are opened before the sampler is lowered. The valves are kept in an open position by the falling clamps.

As soon as the sampler is at the right depth the falling weight is allowed to slide down along the cable, thus thrusting the long falling clamp downwards, resulting in the closing of the downstream valve, only a moment later followed by the other clamp and the upstream valve.

Watertight

Rubber rings take care of the watertight sealing of the body with the sample, during retrieval. The sample can be discharged by opening the valves. By relocating the weights and adjusting the fins, it is possible to hang the sampler in any required position For correct sampling it is important that the water sampler is suspended in balance in the water. Bringing the sampler in balance can be achieved by:

· Adjusting the horizontal tail fin.

· Sliding the tail fin rods through the guiding tubes.

· Altering the weight under the front of the stainless steel cylinder.

Applications

The taking of representative samples (1250 cc) from any desired depth in flowing water can be effected for the benefit of:

  • Chemical analysis.

· Biological- and bacteriological analysis.

· Thermal analysis (cooling water disposal).

  • Mineralogical analysis.

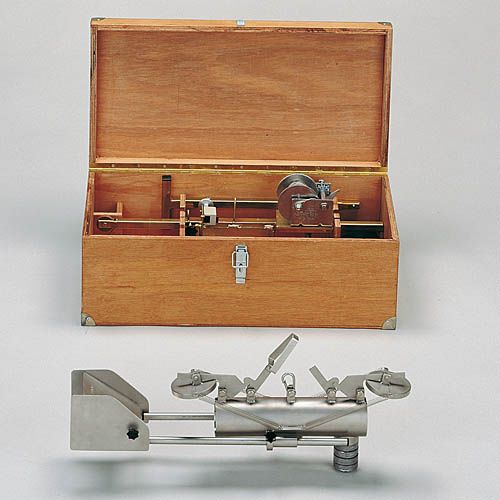

For instance to determine the measure of mud-and/or soil transport by water). relative to the direction of flow. The standard set comprises, among other items: the stainless steel water sampler, a falling weight, a hand winch and a telescopic arm with fastening clip and depth counter. The whole is packaged in a transport case.

Water sampler ‘Watertrap’

Diameter (D) and /or size (L*W*H)

7 * 7 * 30 cm

Maximum sample depth

< 25 m

Point or profile

Point sampling

Power supply

manual

Product material

stainless steel

Rod or Cable length

25 m

Rod or cable operated

cable

Sample specification

undisturbed

Sample stored in



Sample volume

1.25 liter

Sampler position

horizontal

Package size

70 x 37 x 27 cm

Weight

21.9 kg

Applications

Sediment transport research
