Peat profile sampler, type Wardenaar

Until recently, sampling undisturbed peat profiles in peat lands, was a very difficult activity. Digging and sampling profile pits in most peat lands is difficult (if not impossible) as they would immediately fill with water and the walls would slump.

Researching the ecology of peat land environments and the dynamics and stratigraphy of peat profile requires undisturbed samples, especially of the top layers, where most biological activity takes place.

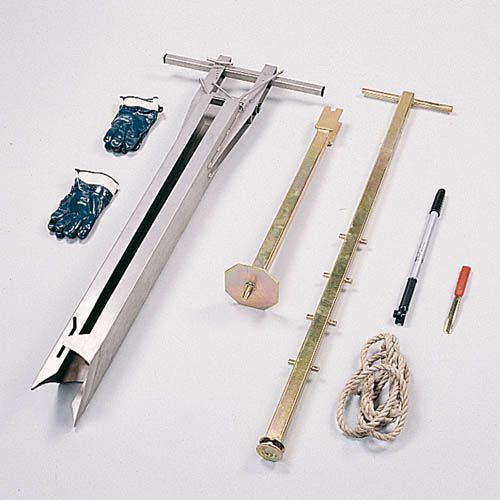

The peat profile sampler, type Wardenaar, is an apparatus for sampling intact, undisturbed peat profiles in peat lands up to a depth of 1 meter. The peat profile sampler consists of a rectangular stainless steel box casing, divided lengthwise into two halves, with very sharp specially shaped cutting edges at the base.

The handgrip hinging with both halves allows both halves to be pushed into the soil alternatingly. A clamp mechanism on the grip allows the profile to be clamped in the sampler when it is extracted from the soil. A small diameter tube is fitted to break the suction of the sample. The standard set contains, among other items: the peat profile sampler, tools, lever beam with support and a hand pump.

Benefits Wardenaar

  • Rectangular large cores in soft (peat) soils
  • Stainless steel for years of use
  • Air gap below sample is filled from air vent
  • Simple jack for sample retrieval

Remarks

  • Keep cutting edges sharp with (included) file

Applications

The profile is used for:

  • Root growth studies.
  • Pollen analysis.
  • Macro-fossil studies (paleo-ecology).
  • Creating soil monoliths.

Peat profile sampler, type Wardenaar

Maximum root thickness

10 mm

Maximum sample depth

100 cm

Product material

stainless steel, iron, other material

Sample diameter

100 x 100 mm

Sample length

100 cm

Sample specification

undisturbed

Sample volume

10 liter

Sampler position

vertical

Package size

147 x 62 x 82 cm

Weight

34 kg

Applications

Soil profile description and classification

Undisturbed sampling

Soil texture research

Root zone sampling
