Soil sampling and classification set

Soil research is a very important aspect in the planning and execution of agricultural- as well as civil engineering and operations. In order to make the soil research as comprehensive as possible the following studies must be made with regards to:

  • The build up of a soil; i.e. determining the composition, the thickness and the position of the various strata.
  • The soil properties; measuring the permeability, the filtration capacity, the bearing capacity, etc.

The build up of a soil and strata is determined with the use of augers. The hand auger is generally used for not too deep bore holes. Hand augers are extremely useful for soil research. Investigating the properties of a soil either takes place in situ, or in the laboratory with the aid of soil samples. For the execution of an universal soil classification in situ various articles have been included in our program.

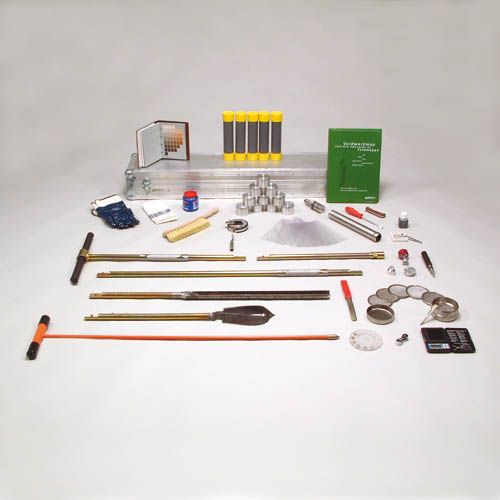

The standard set consists of:

  • An Edelman auger (combination type suitable for various types of soil), a gouge auger inclusive of accessories, as well as a liner sampler for taking undisturbed samples in sample liners (including soil sample containers).
  • The acidity or pH of a soil is determined by using a pH-indicator. This indicator, with a range of pH 4 to 9, gives a global pH reading accurate to 0.5.
  • To determine the physical qualities of the soil a pocket interchange sieve set, a sand ruler, a portable electronic balance, a colouridentification book for soil, a pocket penetrometer and a pocket vane shear tester, an aplanatic magnifier and a pocket knife are included in the set. For the determination of the groundwater level a sounding device with measuring tape has been included.
  • Various accessories including: a glass fibre utility probe (to check the substratum to avoid cutting through obstacles such as cables and tubes), aluminium soil sample boxes, a field data registration set, maintenance kit, work gloves and an aluminium transport case.

Soil sampling and classification set

Connection

bayonet

Angle of cone

0 °

Cone surface range

0.3165 cm²

Connection

screwthread, bayonet

Drilling diameter

7 cm

Maximum force

500 @ 0.3165 cm² kPa

Maximum measuring depth

1 cm

Maximum sample depth

2 m

Maximum shear stress

250 kPa

Measuring range

0 - 500 kPa, 0 - 2.5 kg/cm²

Product material

stainless steel, iron, other material

Sample diameter

37 mm

Sample length

20 cm

Sample specification

undisturbed

Sample stored in

foil

Sampler position

vertical

Package size

117 x 27 x 23 cm

Weight

21 kg

Maximum sample depth

7 m

Product material

iron, other material

Sample diameter

7 cm

Sample length

10 cm

Sample specification

disturbed

Sampler position

vertical

Package size

117 x 27 x 23 cm

Weight

18 kg



Applications

Soil profile description and classification

Soil sampling above groundwater table

Soil sampling below groundwater table
