HD2 Kontrol Ünitesi

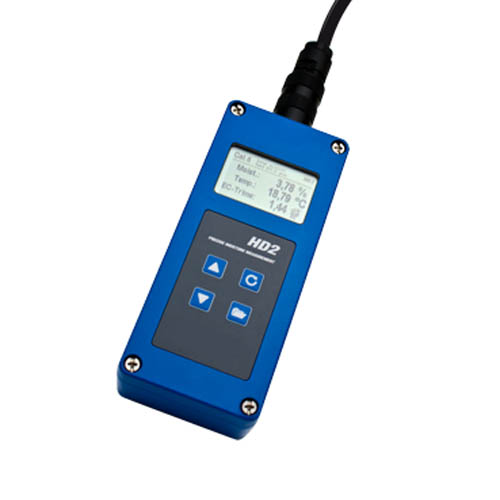

HD 2 HD2 the mobile moisture meter for soil and road salt Precise as a laboratory and as mobile as a cell phone. The IMKO HD2 - measuring the soil moisture content, the soil conductivity EC, and the level of salt contamination can now be performed as fast and easy as never before! Within two seconds, the moisture content value, the temperature, and the soil conductivity EC are displayed on the clear display. The probe TRIME-PICO64 measures with the new TRIME®-radar technology (Time-Domain-Reflectometry) The IMKO HD2 - measuring the soil moisture content, the soil conductivity EC, and the level of salt contamination can now be performed as fast and easy as never before! Within two seconds, the moisture content value, the temperature, and the soil conductivity EC are displayed on the clear display. The probe TRIME-PICO64 measures with the new TRIME®-radar technology (Time-Domain-Reflectometry). • All of the TRIME-PICO probes can connected to the HD2: TRIME-PICO 64, TRIME-PICO 32 und TRIME-PICO IPH T3/44. • The TRIME-PICO pobes can now report soil EC as standard simultaneously with soil moisture content percentage. • The TRIME probes measure conductivity with the same large soil volume as it will be used for the TDR moisture measurement. • Both durable and waterproof construction ensures safe handling even under difficutl environmental conditions. A reliable, practical and easy-to-use Determination of Soil Conductivity and Salt Content with TRIME Probes: PICO 64, PICO 32 and PICO IPH T3/44. IMKO´s TRIME TDR-probes can now report soil EC as standard simultaneously with soil moisture content percentage. A manual conversion based on researched curves for different soil types enables the user to derive a soil EC expressed in mg/l TDS (total dissolved salts). • TRIME probes measure conductivity with the same large soil volume as it will be used for the TDR moisture measurement. The contact of the probe rods inside the soil is far less critical as with "galvanic" EC probes with a point to point measurement where even small air gaps lead to significant deviations. • - TRIME probes use coated and therefore isolated rods which guarantee the non-appearance of galvanic accumulation along the rods allowing for long-run installations over many years. Unisolated rods means there is a risk of galvanic reactions and possible influence on the sensor´s reading with serious problems when the probes must be removed from larger depths due to a rod cleaning. • - TRIME probes measure moisture and conductivity very precisely at a frequency of 1GHz with a better and more exact separation of moisture and conductivity in comparison to capacitive probes with lower frequencies. This means that in practice, a reliable determination of the pore water conductivity ECw and respectively TDS (mg of salt per liter water) is possible at different moisture levels. • All TRIME probes work with a concurrently basic calibration for moisture and conductivity. This allows a check of the limits of saline stress in soils according to standards of FAO2006 for specific soils.

PICO64, PICO32, PICO-IPH

Storage Temperature

-30°C up to 80°C

Operating Temperature

-20°C up to 70°C

Charging Temperature

10°C up to 30°C

Charging Voltage

Nom. 12V, Max. 15V, Min. 12V

Charging Current

ca. 1A

Charging Time

At exhaustively discharged accumulator. 2h

Accumulator

Ni-MH (4 x 1.2V) (AA), 2000mAh, >1500 Measurements

Physical BUS

RS485

Bus-Protocol

IMP-BUS-Protokoll II

IMP-Bus Port Settings

8 Data Bits, 2 Stopp Bits, Odd Parity
