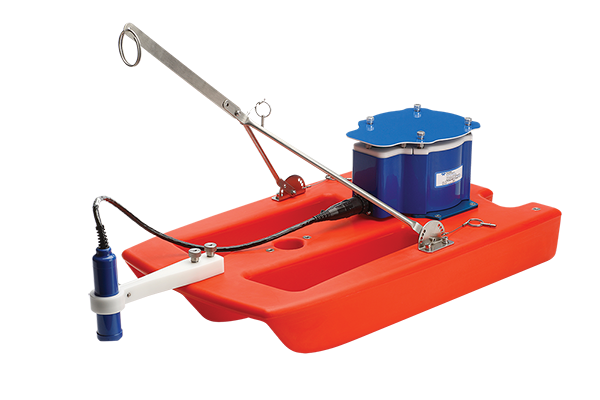

StreamPro ADCP

Product Features

Quick: Collect complete streamflow measurements in streams or canals in a matter of minutes.

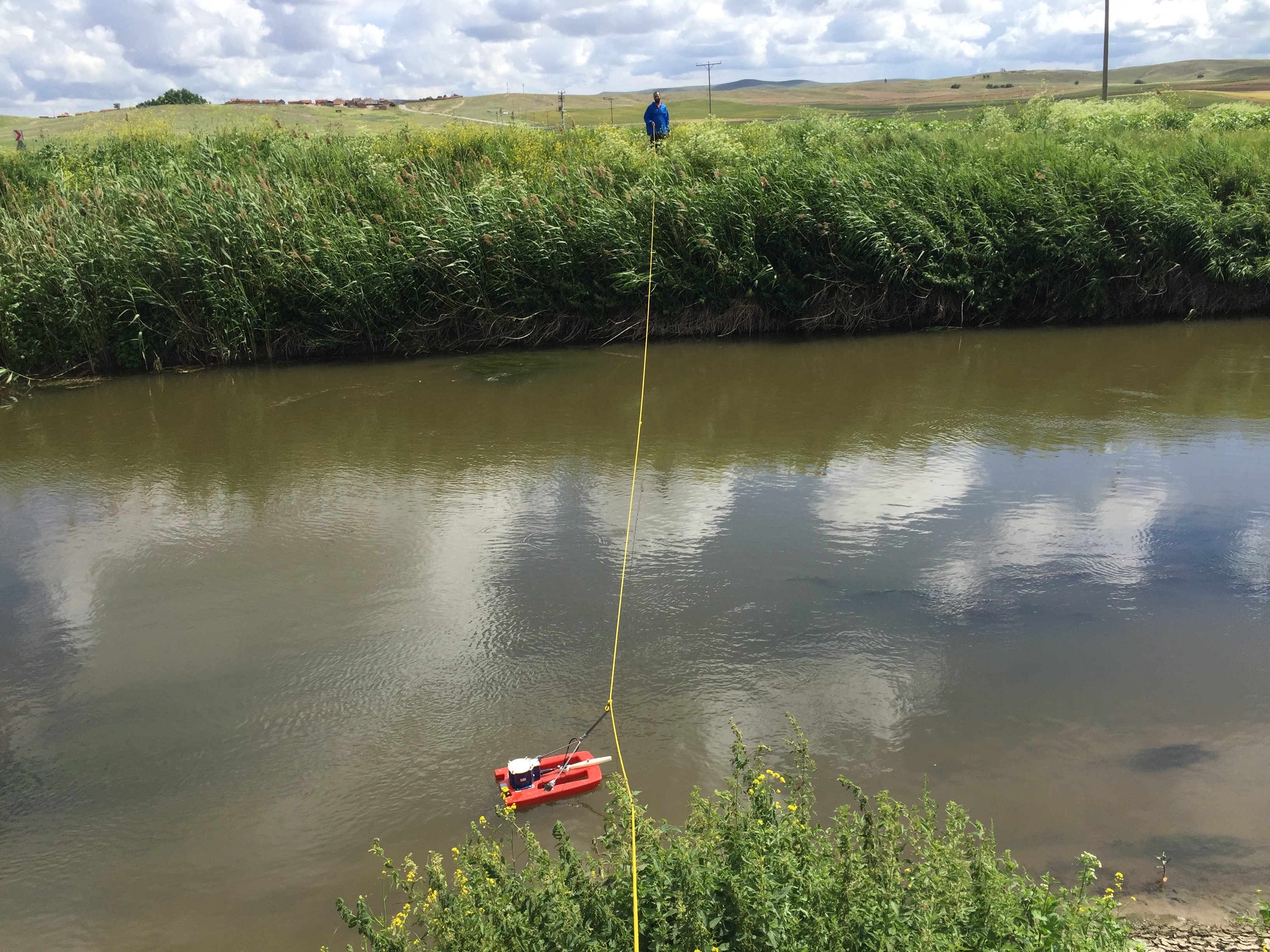

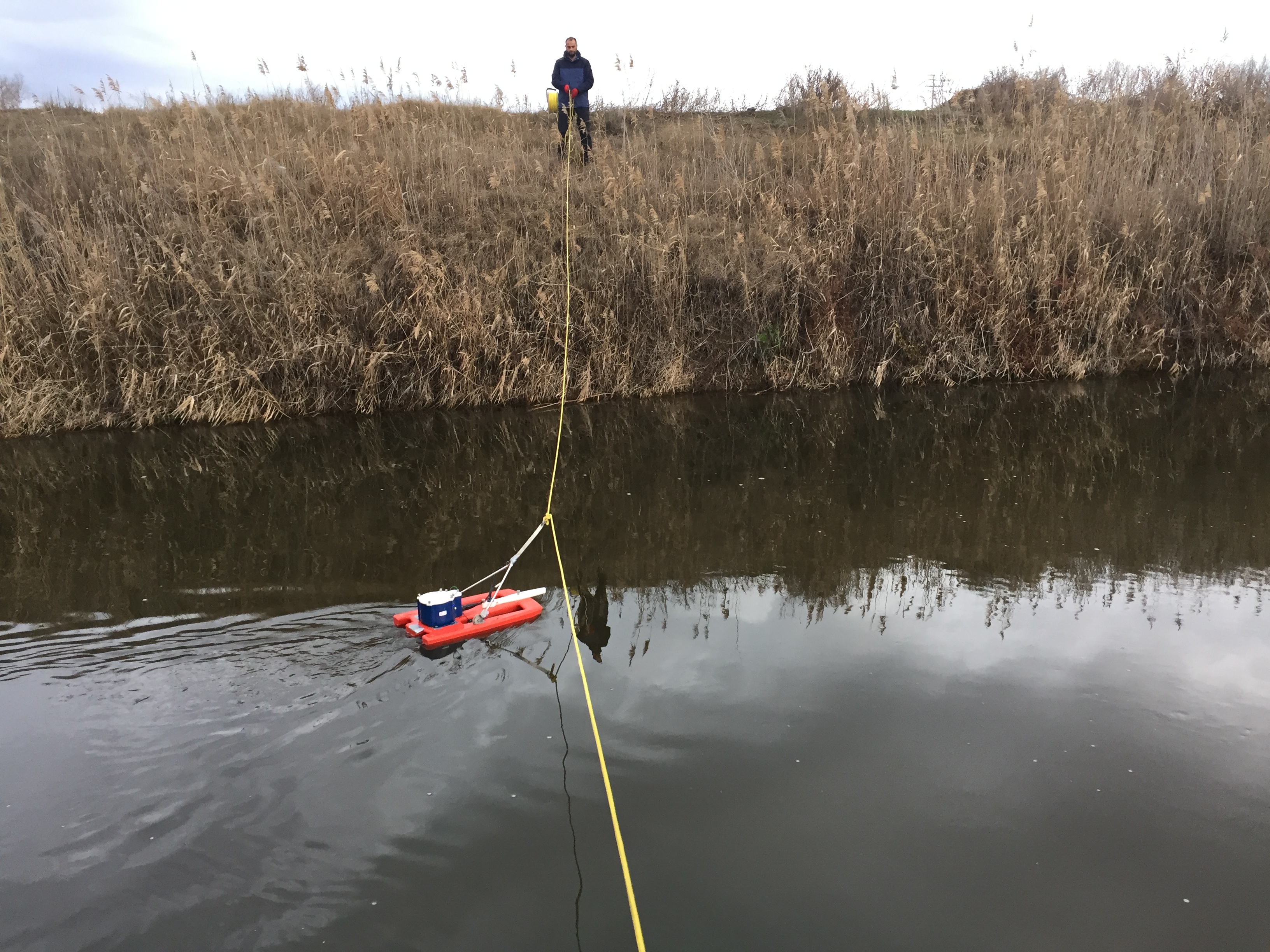

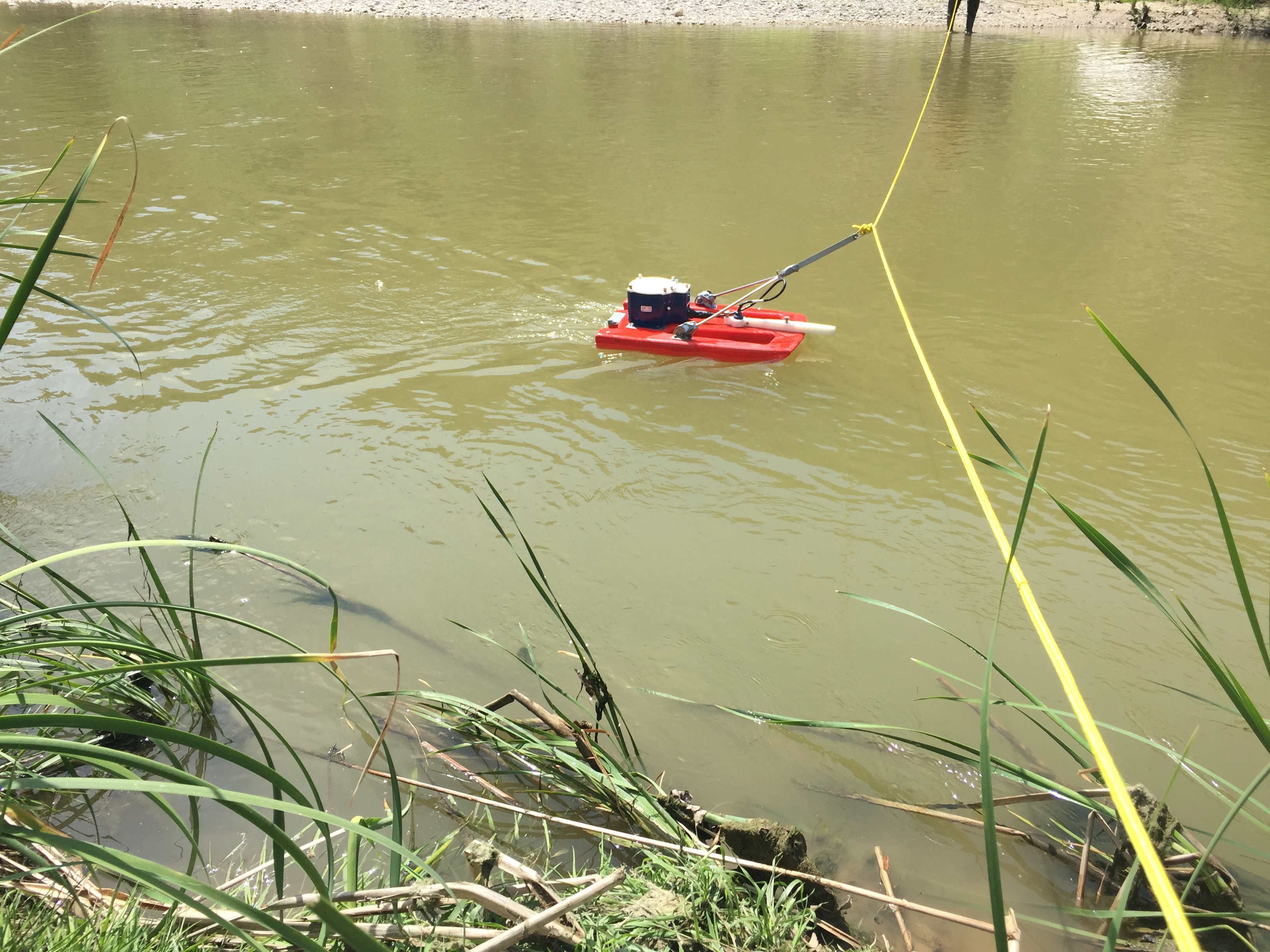

• Convenient: No need to move from station to station. Simply cross a bridge or use a tagline to collect data.

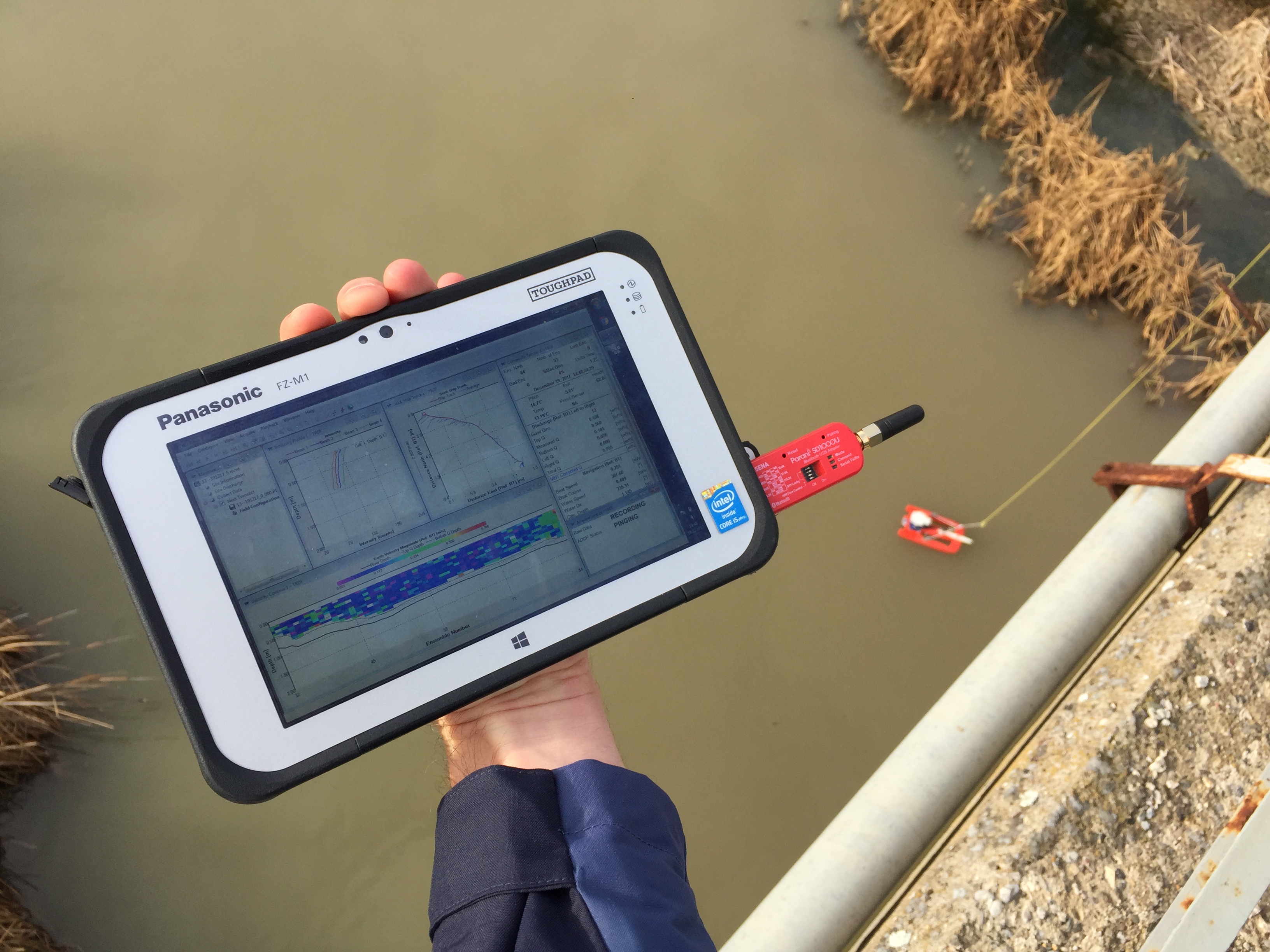

• Easy to Operate: Data is conveniently acquired using a PocketPC or a laptop equipped with a highly intuitive user interface.

• Reduced Disturbance: Small transducer head, 3.5cm in diameter, for minimal flow disturbance. • Affordable: Value-priced system designed to suit your budget.

• Bottom Tracking: Reliable bottom-tracking in 0.1m–7m depth.

• Wireless: Bluetooth communications utilized between electronics and PocketPC or laptop.

• Low Power Consumption: Full day of operation on 8 AA batteries.

• Versatile: Minimum cell size 2cm with up to 30 cells. Standard profiling range of up to 2m (6m with upgrade).

• Flexible Data Format: All acquired data is compatible with Teledyne RDI’s WinRiver II software for data display and processing.

Range -4° to 45°C
Accuracy ±0.5°C
Operation Modes
Standard profiling (Broadband)
High-precison profiling (included)
Transducer
Frequency 2MHz
Configuration Janus 4 beams at 20° beam angle
Software
  • StreamPro Software for Pocket PC
  • WinRiver II (included) for moving-boat measurement
  • SxS Pro (optional) for stationarymeasurement
Available Upgrades
• Extended profiling range to 6 meters
• SxS Pro Software for stationary measurement.
• Compass and tilt (pitch and roll) sensors
• GPS
• High-speed float
Communications
Bluetooth wireless
Baud rates: 115,200 bps
Construction
Cast polyurethane with stainless hardware
Power
Voltage 10–13.5VDC (8 AA batteries, alkaline or rechargeable NiMH)
Battery capacity 7.5 hours continuous with 8 AA alkaline batteries;
Environmental
Operating temperature: -5°C to 45°C
Storage temperature : -20°C to 50°C
Physical Properties
Weight in air 5.9 kg including electronics, transducer, float, and batteries
Dimensions Electronics housing: 16 x 21 x 11cm Transducer: 3.5cm diam. x 15cm length
  Float: 42 x 70 x 10cm (line drawings available upon request)
1 Assume one good cell (minimum cell size) with high precision profiling mode, range measured from the transducer surface.
2 Assume fresh water, actual range depends on temperature and suspended solids concentration.
3 2m/s for standard float; 3.5m/s for optional high-speed float.
4 Assume uniform water temperature and salinity profile
Specifications subject to change without notice
