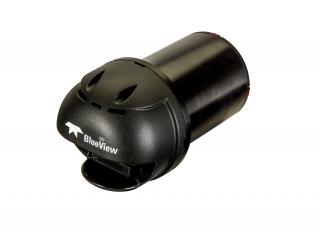

M900-2250 Dual Frequency Series

Teledyne BlueView's M900-2250 series includes a 900kHz with 130 degree field of view and 2250kHz with 130 degree field of view in a compact package. The M900-2250-130's field of view has been increased by over 125% from the previous dual frequency model.



  • Obstacle Avoidance
  • Vehicle Navigation
  • Long range detection and close range identification
  • Operations Monitoring
  • Situational Awareness
  • Touch Down Monitoring
  • Diver/Swimmer Detection & Tracking

Benefits

  • NEW!!! 'S3' electronics
    • 30% lighter, smaller, faster and less power then P Series

    • Automatically adjust transmit power level to improve imagery up close and at long ranges

    • UDP broadcast modes

    • Built in hardware triggering options

    • Built in target tracking options

  • Easily fits on any platform
  • Expanded area coverage
  • High-resolution imagery with 900 kHz and ultra high-resolution imagery with 2250 kHz
  • Unaffected by motion
  • Easy automation of nav-control system

M900-2250-130
Description Ultimate system for maximum area coverage with ultra wide field-of-view with long range navigation and ultra high resolution dual frequency
Sonar
Field-of-View 130°
Max Range (900/2250) 100 m (328 ft.)/10 m (33 ft.)
Optimal Range (900/2250) 2 - 60 m (6.5 - 197 ft.)/0.5 - 7 m (1.6 - 23 ft.)
Beam Width (900/2250) 1° x 20°/1° x 20°
Beam Spacing 0.18°
Number of Beams 768
Range Resolution (900/2250) 1.3 cm (0.54 in.)/0.6 cm (0.25 in.)
Update Rate* Up to 25 Hz
Frequency 900 kHz - 2250 kHz
Interface
Supply Voltage 12-48 VDC

Max Power Consumption** (900/2250)

20 W/25.8 W
Connectivity Ethernet/VDSL*
Mechanical
Weight in Air (1,000 m/4,000 m) 4.3 lbs/11 lbs
Weight in Water (1,000 m/4,000 m) .95 lbs/5.1 lbs
Depth Rating 1,000 m (3281 ft.), 4000 m (31,120 ft.) and 6,000 m (19,685 ft.)
Size*** L x W (max. OD) (1,000 m/4,000 m) 8.6 in x 5 in (4 in can)/ 10.2 in x 5 in (5 in can)
Connector Options MKS, Burton, Schilling SeaNet


*Range dependent

**Non-VDSL unit at 24VDC

***Length does not include connector length
