Açılabilen Tüplü Profil Örnekleme Seti

Split tube sampler, Ø 53 mm, set

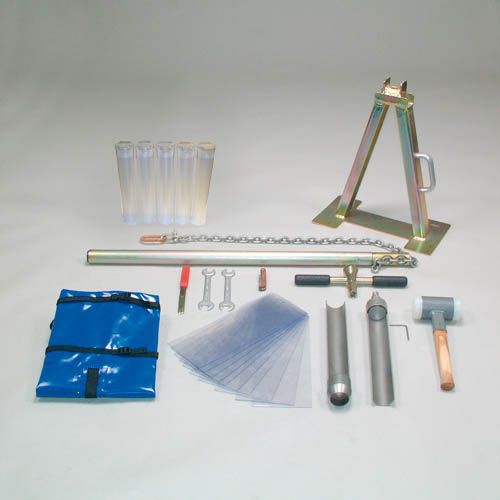

The split tube sampler is an apparatus for rapid undisturbed sampling at the surface. The apparatus is very suitable for research on root systems, fertilizing and soil biology. The set consists of a split tube sampler with a handle with beating head, hammer with nylon heads (shock-absorbing), sample liners, storage containers and a steel lifting jack with lever and chain. The split tube sampler consists of two stainless steel tube halves with a working length of 40 cm. Undisturbed sampling often poses a problem when removing the sample from the sampling tube. With this type of auger, both parts can be easily separated. The sample is located (loose or in the liner) in the detachable tube. The split tube sampler can easily be opened for immediate research of the sample or transport of the sample to the laboratory. Depending on the nature of the research, it is recommended (in order to obtain representative samples) to decontaminate the apparatus after every sampling.

Benefits Split tube sampler

  • Ideal for surface sampling
  • Can be hammered
  • Easy opening y split tube system
  • Stainless steel body


The split tube sampler is applied for e.g.:

  • Root system research.
  • Accurate surveying (samples for profile description).
  • Fertilizing, chemical research and soil biology.

Split tube sampler, Ø 53 mm, set



Maximum root thickness

15 mm

Maximum sample depth

40 cm

Product material

stainless steel, iron, other material

Sample diameter

50 mm

Sample length

40 cm

Sample specification


Sample stored in


Sample volume

785 ml

Sampler position


Package size

126 x 65 x 50 cm


35 kg


Soil profile description and classification

Soil sampling above groundwater table

Environmental soil research

Undisturbed sampling

Soil texture research

Root zone sampling
