Compact Crawler 130 kN

CC 130

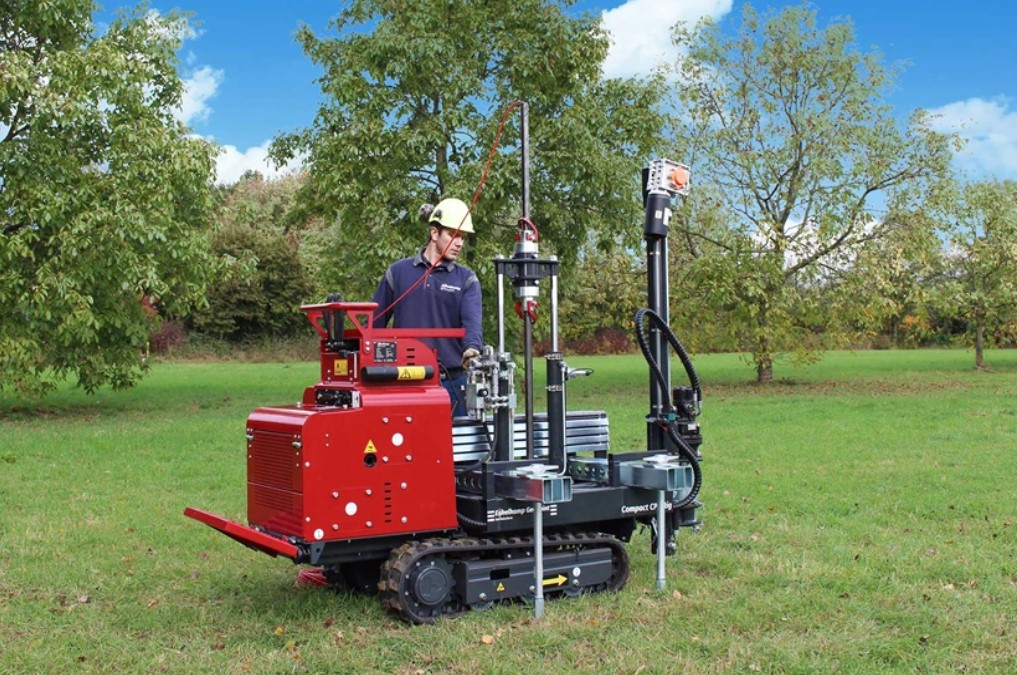

Compact Crawler 130 kN

Our Compact Crawlers are designed to ensure access to even the most restricted and difficult to reach sites, whilst being easy to transport and operate.

  • Lightweight and easy to transport
  • Perfect for jobsites with narrow access and/or low headroom
  • Integrated ground anchoring system
  • Detachable CPT pusher
  • Easy to operate


















Despite its small size, the Compact Crawler 130 kN is a highly effective CPT rig that allows you to conduct CPT at even the hardest to reach locations. The purpose built narrow frame allows access through tight spaces, such as doors and between buildings. The reduced stroke CPT pusher even allows you to conduct CPT in low headroom environments.

Thanks to its compact size, the crawler can be delivered to site in a standard van, or even a very small trailer, making it perfect for use in urban areas and even reducing mobilisation costs. Once delivered to site, this stand alone unit can be driven between testing points under its own power.

The reaction force necessary for CPT is generated by installing four ground anchors, which are screwed into the ground with the rotary head mounted on the compact crawler.

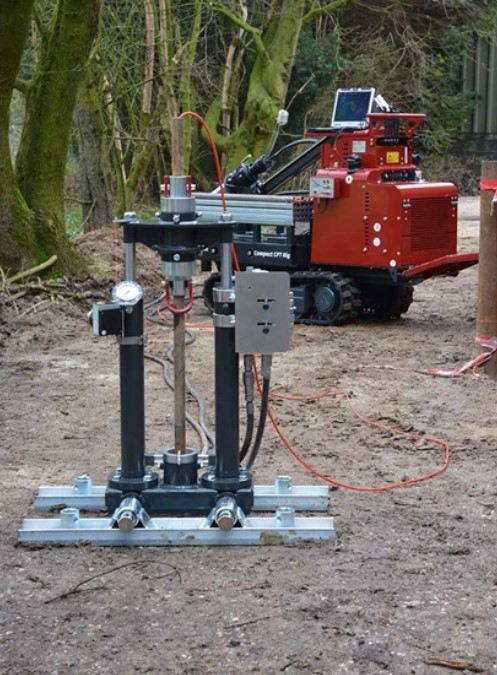

Detachable pusher

To conduct CPT in spaces that even the Compact Crawler cannot reach, or in confined areas where noise and exhaust gas are problematic, the pusher can be detached from the crawler and anchored in place using a ground or wall frame. The CPT can then be conducted with the hydraulic power provided by the crawler or a separate power pack. The detachable pusher makes the CC 130 an incredibly versatile and adaptable unit.



CC 130
Dimension (LxWxH) 2,620 x 790 x 2,030 mm | 103 x 31 x 80 in
Weight (without rods) 1,100 kg | 2,425 lbs
CPT stroke 550 mm | 22 in
Pushing force 130 kN | 13 tf (long)
Pulling force 170 kN | 17 tf (long)









































Bu ürün için bize mail atabilir.
