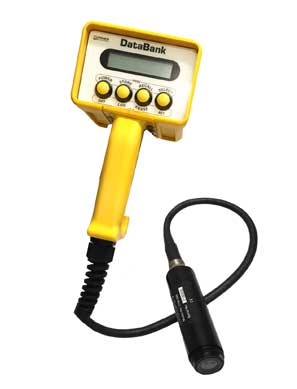

The DataBank™ is a rugged and self-contained universal meter, datalogger and power supply. Specifically designed for use with the Cyclops-7 and C-sense product lines, sensor calibration and operation are simple. The DataBank records high-frequency data which may be downloaded and graphically displayed on a pc. Sensor power is provided directly from the DataBank’s internal rechargeable batteries. Alternatively, an external +12 VDC power can be used. Various sensor cable lengths are available to allow sampling at multiple depths.
Product Highlights:
DataBank Datalogger Specifications
| DataBank Electrical Specifications |
| Selectable Sensor Parameters |
Voltage: Software selectable 3 to 12 volts
Current: 150 mA at 3V to 100 mA at 12V
Warm-up Time: 0-25 seconds
Gain: 1-4 |
| Inputs |
Input Selection: Switch; Differential Voltage, Differential Current or Dual Current
Range: 0-5V or 0-25 mA
Resolution: 12 bits
Sampling Rate: 1000 Hz (bursts); groups of bursts re-averaged @ 30 Hz
|
| Outputs |
Two, Open Drain, up to 200 mA @ 15V max
(Used primarily for gain selection) |
| Storage |
Non-Volatile, 1280 Kb
(9,999 records, 1 record = sensor reading, date, time and location) |
| Current Draw |
Computer: < = 45 mA (at full charge). Sleeping < 20 uA
LCD Backlight: Full power ~ 30 mA. Low Power ~ 15 mA |
| Battery |
Type: NiMH rechargable, 4.8 volts, 4,000 mA/Hr.
Life: Continuous up to 70 hours (dependant on sensor/settings)
Note: When using the DataBank with the C-sense, it is recommended that the voltage be set to 6 and the warm-up time be set to 3 minutes. Using these settings with a 5 minute sampling interval, you can expect a fully charged DataBank to collect 300 samples. |
| Charge Time |
~3 hours (for a fully discharged battery; ambient @ 25 degrees C) |
| Communications |
USB |
| Handheld DataBank Physical Specifications |
| Size |
Main body: 4.6"W x 3.2"H, x 3.4"D, Handle: 4.8" long
(117mm W x 81mm H x 86 mm D, Handle: 122mm)
Overall: 11”H (279 mm H) with handle, strain-relief and connector. |
| Weight |
1.7 lb. (.76 kg) w/o pigtail |
| Cyclops-7 Performance |
| Linearity: 0.99R2 |
| Application |
Minimum Detection Limit |
Linear Range |
| CDOM/FDOM |
0.1 ppb**
0.5 ppb*** |
0-1,500 ppb**
0-3,000 ppb*** |
Chlorophyll in vivo
Blue Excitation
Red Excitation |
0.03 μg/L
0.3 μg/L |
0-500 μg/L
>500 μg/L |
| Fluorescein Dye |
0.01 ppb |
0-500 ppb |
| Oil - Crude |
0.2 ppb*** |
0-1,500 ppb*** |
| Oil - Fine |
10 ppb*
10 ppm**** |
7,000 ppb*
>100 ppm**** |
| Optical Brighteners |
0.6 ppb*** |
0-2,500 ppb*** |
Phycocyanin
(Freshwater Cyanobacteria) |
2 ppbPC |
0-4,500 ppbPC |
Phycoerythrin
(Marine Cyanobacteria) |
0.1 ppbPE |
0-750 ppbPE |
| PTSA Dye |
0.1 ppb*** |
0-650 ppb*** |
| Rhodamine Dye |
0.01 ppb |
0-1,000 ppb |
| Tryptophan for Wastewater Monitoring |
3 ppb |
5,000 ppb |
| Turbidity |
0.05 NTU |
0-1,500 NTU |
* 1,5 Napthalene Disulfonic Disodium Salt
** Quinine Sulfate
*** PTSA (1,3, 6, 8 - Pyrenetetrasulfonic Acid Tetrasodium Salt)
**** BTEX (Benzene, Toluene, Ethylbenzene, Xylenes)
PC Phycocyanin pigment from Prozyme diluted in Deionized water
PE Phycoerythrin pigment from Prozyme diluted in Deionized water |
| Cyclops-7 Physical Dimensions |
| Length x Diameter |
5.7" x 0.9"; 14.48 x 2.23 cm (SSt or Ti) |
| |
5.7" x 1.25", 14.48 x 3.18 cm (Delrin) |
| Weight |
5.0 oz; 142 grams |
| Cyclops-7 Environmental Characteristics |
| Temperature Range |
Ambient: 0 to 50 deg C |
| |
Water Temp: -2 to 50 deg C |
| Depth Range |
600 meters |
| Signal Output |
0 - 5 VDC |
| Supply Voltage Range |
3 - 15 VDC |
| Power Requirements |
< 300mW typical |
