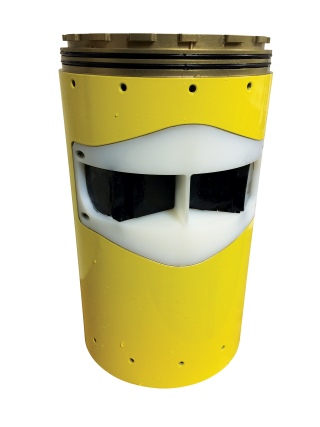

AUV Modules: Multibeam Profilers, Gap Fill and Engineered to Order (ETO)

Teledyne BlueView is recognized as the leading manufacturer of integrated Multibeam Profiling sonar systems for high resolution data collection. Our unique technology allows BlueView to offer some of the most technologically advanced, light-weight, low-power systems for AUV manufacturers and operators. Standard OEM modules are available through most AUV manufactures, and Engineered To Order (ETO) solutions are also available to accommodate non-standard AUV solutions. The Multebeam Profiler and SmartCore Data-logger combination provide real-time profiles and storage of data for post-mission review.

Platforms

  • Autonomus Underwater Vehicles (AUV)
  • Unmanned Underwater Vehicles (UUV)
  • Tow-Fish
  • Diver Propulsion Vehicles (DPV)
  • Manned Submersibles
  • Custom Installations

Applications

  • Side scan sonar gap fill
  • Confined area search
  • Mine hunting
  • Area mapping
  • Object identification
  • Pipeline tracking & inspection
  • Intelligence, Surveillance, and Reconnaissance (ISR)

Options

Sensor Types

  • 3D Multibeam Profiler - high resolution data and imagery
  • Commercial Off The Shelf (COTS) systems available for vehicle integration
  • Customized vehicle modules (contact sales department for proposals)
  • Customized integrated 2D and 3D systems available

Available Frequencies

  • 1.35 MHz (3D Multibeam Profiler and Gap-Fill Sensors)
  • 2.25 MHz (3D Multibeam Profiler and Gap-Fill Sensors)

Available Depth Ratings

  • 300 m (1,000 ft.)
  • 4,000 m (13,123 ft.)
  • Customized depth rated systems available

3D Multibeam Profiler & Gap Fill Systems

  MB2250 MB1350
Sonar
Field-of-View 40° or 80° 40° or 80°
Max. Range 10 m (33 ft.) 30 m (98 ft.)
Optimum Range 0.5 - 7 m (1.6 - 23 ft.) 1 - 20 m (3.2 - 65 ft.)
Beam Width 1 x 1 deg 1 x 1 deg
Beam Spacing 0.18 deg 0.18 deg
Range Resolution 0.6 cm (0.24 in.) 1.1 cm (0.43 in.)
Update Rate* Up to 30 Hz Up to 30 Hz
Operating Frequency 2.25 MHz 1.35 MHz
Interface
Supply Voltage 12 - 48 VDC 12 - 48 VDC
Max Power Consumption** 20 W 20 W
Connectivity Ethernet Ethernet
Mechanical
Depth Rating 1000 m (3,280 ft.)
4,000 m (13,124 ft.)
1000 m (3,280 ft.)
4,000 m (13,124 ft.)

Dimensions (LxWxH) (standard/Deep)

8.2 in x 4.3 in x 4.0 in (4.0 in diameter can)/

10.4 in x 5.0 in x 5.0 in (5.0 inch diameter can)

9.0 in x 11.8 in x 4.4 in (4.0 inch diameter can)

10.75 in x 11.8 in x 5.0 in (5.0 inch diameter can)

Application
  Low altitude (<7 m) target identification & gap fill Medium altitude (<25 m) target identification & gap fill

*With Pentium M 1.4 GHz processor and Range dependent

**Non-VDSL unit at 24 VDC

***Length does not include connector length
