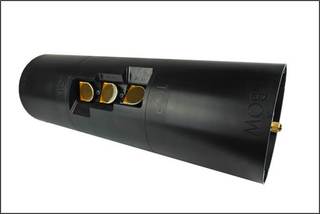

The T2250 is a 360° profiling sonar capably of gathering over 45,000 range measurements per second. The system is fully turn-key with on-board data logging and real-time collection and visualization capabilities through Teledyne PDS software. Built around a form factor intended for ROV and AUV deployment, the system fills a longstanding void in the tunnel and cave inspection market.
- 3D profiling inside tunnels from 2m to 16m diameter
- Cave inspection
- Internal hydro-electric dam
- Survey of vertical shafts
Benefits
- Full 360 degrees of coverage
- Real time display of data
- Ultra-High Resolution
- Built-in Data Storage
Features
- Industry Standard Output Format
- Standard Ethernet Interface
- Software Development Kit Options
Requirements
- Tunnel Profiler is considered a module sensor and requires a vehicle/deployment which provides movement through the pipe/tunnel of interest. Vehicle/deployment must have reliable Navigation, Heading, and Pitch/Roll available topside for Tunnel Profiling software.
| T2250 |
| Description |
Ideal for detection and identification with expanded field-of-view |
| Sonar |
| Field-of-View |
360° |
| Optimal Range |
1 - 8 m (3.3 - 26.4 ft.) |
| Range Diameter |
2 - 16 m (6.6 - 52.8 ft.) |
| Beam Width |
1° x 1° |
| Number of Beams |
2100 |
| Beam Spacing |
0.18° |
| Range Resolution |
0.6 cm |
| Update Rate* |
Up to 20 Hz |
| Frequency |
2250 kHz |
| Interface |
| Supply Voltage |
12 - 48 VDC |
| Max Power Consumption (24VDC) |
32 W@ 3 m range /45 W @ 10 m range |
| Connectivity |
Ethernet (up to 55 Mbps) |
| Mechanical |
| Weight in Air |
15.19 kg (33.50 lbs.) |
|
Weight in Water
|
0 kg (0 lbs.) |
| Depth Rating |
1,000 m (3,280 ft.)
|
|
Size L x W(OD)
|
23.4in. x Ø7.9in. / 594mm x Ø200mm
|
| Connector |
MKS |
