CyanaFluor El Tipi Hab Tayin Cihazı

Predict the Onset of Harmful Algal Blooms

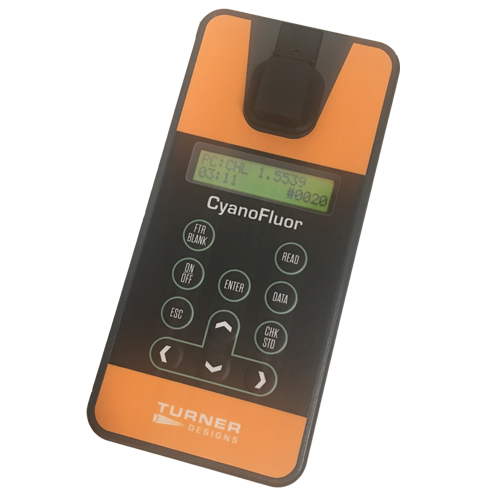

Early identification of harmful algal blooms (HABs) is important to be able to leverage resources to protect public health. CyanoFluor™ is a field-portable fluorometer which quickly performs internal calculations providing an indication of whether environmental conditions are changing, favoring cyanobacterial production which typically lead to HABs. CyanoFluor provides PC (phycocyanin) to CHL (chlorophyll) ratios for determining relative contribution of cyanobacterial populations within whole phytoplankton populations. Monitoring PC to CHL ratios over time enables users to spot the increase of cyanobacteria as an early indication of HAB development. Predicting the onset of these types of blooms is critical for controlling and mitigating their harmful effects.

Raw water samples can be quickly analyzed with results displayed in less than 30 seconds. Simply insert a 4-sided clear 10x10mm square glass or quartz cuvette with your sample and press READ. PC:CHL ratios are displayed and logged to be downloaded at a later time. Raw fluorescence readings are also displayed and can be correlated with µg/L chlorophyll concentrations.

CyanoFluor is factory calibrated meaning no calibration standards or tools are required; solid state opto electronics ensure long term instrument stability. CyanoFluor’s intuitive functions, self-contained design, small size, internal data storage and field portability make it an ideal instrument for HAB monitoring efforts.

Product Hightlights:

  • Estimate Abundance of Cyanobacteria
    - PC:CHL Ratios
    - Raw Fluorescence Tracking
  • Fast
    - Results in <30 seconds
    - Quick Calibration Check
  • Portable
    - Handheld, Battery Powered
    - Highly Durable Case
    - Internal Data Logging

CyanoFluor Handheld HAB Indicator Specifications
MDL: 0.3 µg/L

Linear Range: 0-100 µg/L

Linearity: 0.99R2

Weight in Air: 13.9 oz; 0.4 kg

Size: 1.75” x 3.5” x 7.25”; 4.45 cm x 8.9 cm x 18.4 cm

Warm-up Time: 5 seconds

Case: IP 67 standard; dustproof/waterproof

Temperature: 41-104°F; 5-40°C

Power: 4 AAA batteries (standard or rechargeable)

Max Data Capacity: 1,000 measurements

Data Output: ASCII
