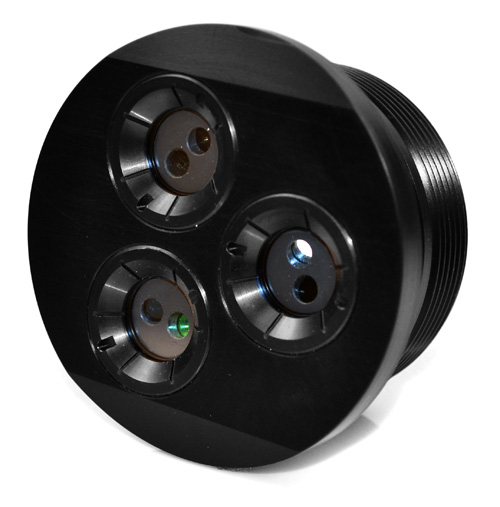

Cyclops Integrator™ Submersible Fluorometer
he Cyclops Integrator™ provides a package optimized for integrating Cyclops™ sensors into vehicles. One, two, or three optical sensors ranging from deep ultraviolet to infrared can be mounted with the Cyclops Integrator electronics in a very compact footprint. Submersible to 1000m, the Cyclops Integrator is available with or without a watertight housing.
Product Highlights:
· One, Two or Three Optical Sensors
· Low Power Requirements
· Quick Power Up - 3 Seconds to 1st Data Output
· Simple Data Integration
Cyclops Integrator Submersible Fluorometer Specifications
|
Application
|
Minimum Detection Limit
|
Dynamic Range
|
|
CDOM/FDOM
|
0.15 ppb**
0.5 ppb***
|
0-1250 ppb**
0-5000 ppb***
|
|
Chlorophyll in vivo
Blue Excitation
Red Excitation
|
0.025 μg/L
0.5 μg/L
|
0-500 μg/L
>500 μg/L
|
|
Fluorescein Dye
|
0.01 ppb
|
0-500 ppb
|
|
Oil - Crude
|
0.2 ppb***
|
0-2700 ppb***
|
|
Oil - Fine
|
10 ppb*
10 ppm****
|
>10,000 ppb*
>100 ppm****
|
|
Optical Brighteners
|
0.6 ppb***
|
0-15,000 ppb***
|
|
Phycocyanin
(Freshwater Cyanobacteria)
|
2 ppbPC
|
0-40,000 ppbPC
|
|
Phycoerythrin
(Marine Cyanobacteria)
|
0.15 ppbPE
|
0-750 ppbPE
|
|
Rhodamine Dye
|
0.01 ppb
|
0-1000 ppb
|
|
Tryptophan
|
3 ppb
|
>20,000 ppb
|
|
Turbidity
|
0.1 NTU
|
0-3000 NTU
|
|
* 1,5 Napthalene Disulfonic Disodium Salt
** Quinine Sulfate
*** PTSA (1,3, 6, 8 - Pyrenetetrasulfonic Acid Tetrasodium Salt)
**** BTEX (Benzene, Toluene, Ethylbenzene, Xylenes)
PC Phycocyanin pigment from Prozyme diluted in Deionized water
PE Phycoerythrin pigment from Prozyme diluted in Deionized water
|
|
Cyclops Integrator Physical Specifications
|
|
Diameter
|
< 3 in; 7.7 cm
|
|
Height
|
1.625 in; 4.1 cm
|
|
Height w/ Housing
|
3.15 in; 8 cm
|
|
Temperature
|
-2 to 50 degrees C.
|
|
Depth
|
0 to 1000 meters
|
|
Material
|
Anodized Aluminum
|
|
Cyclops Integrator Electrical Specifications
|
|
Output
|
RS232
|
|
Sample Interval
|
1 Second
|
|
Minimum Power Supply
|
12 to 30V; 3W
|
|
Maximum Current w/ 3 sensors
|
80 mA
|
